Electrostatic Grounding Controller for FIBC
- Model
- Earthing Pro FIBC
Item specifics
- Ground Resistance Threshold
- ≤ 10 Ω
- Outputs
- On-off signal,10A 250VAC/5A 30VDC
- Operating Temperature
- -20 °C to +60 °C
- Response Time
- < 1 second
- Supply Voltage
- 85~250 V / 24~48 V
- Input Current
- 90mA
- Certification
- II2(1) G Ex db ia[ia Ga]IIC T6 Gb
- Certification
- II2(1) D Ex ia tb[ia Ga]IIIC T80℃ Db
Review
Description
Electrostatic Gpuding Controller Earthing Pro FIBC
1. Introduction
Earthing Pro FIBC is a static grounding controller specifically designed for conductive and dissipative FIBC (Flexible Intermediate Bulk Containers), commonly known as big bags.
The system verifies proper grounding of the FIBC bag before and during filling or discharge operations, helping to reduce electrostatic ignition risks in powder and bulk material handling.
2.Why FIBC Grounding Matters？
1.Static charge accumulation during powder filling
.
2.Electrostatic discharge inside combustible dust atmospheres.
3.FIBC grounding often overlooked or incorrectly applied
.
4.Visual checks alone cannot confirm grounding integrity.
3.How Earthing Pro FIBC Works？

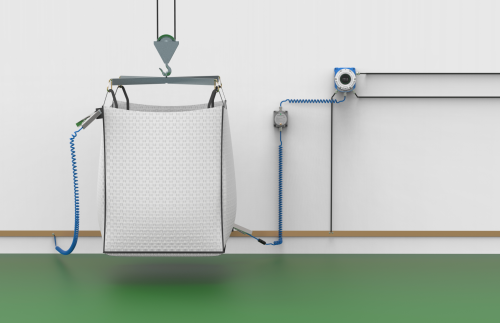

1.The grounding clamp is connected to the FIBC conductive element
.
2.Earthing Pro FIBC verifies the grounding connection
.
3.Visual and audible signals indicate grounding status
.
4.Filling or discharge is permitted only when grounding is confirmed
.
5.Alarm is activated if grounding is lost during operation.
4.Key Features
1.Dedicated design for conductive and dissipative FIBC
.
2.Continuous grounding verification during operation.
3.Prevents filling under ungrounded conditions
.
4.High-visibility visual and audible alarms
.
5.Industrial-grade enclosure for filling environments
.
6.Optional interlock with filling equipment.
5.Applications
1.FIBC filling stations
2.Powder and bulk material handling
3.Chemical and pharmaceutical plants
4.Food and feed processing facilities
5.Hazardous dust environments
6.Product Positioning
Earthing Pro FIBC is designed specifically for grounding conductive and dissipative big bags.
For liquid transfer and tank vehicle grounding, Earthing Pro GE、TK or MV systems are recommended.
