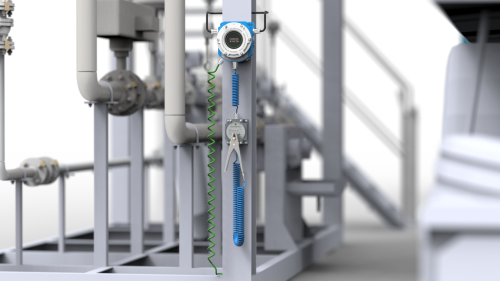

Truck Electrostatic Grounding Controller
- Model
- Earthing Pro TK
Item specifics
- Ground Resistance Threshold
- ≤ 10 Ω
- Outputs
- On-off signal,10A 250VAC/5A 30VDC
- Operating Temperature
- -20 °C to +60 °C
- Response Time
- < 1 second
- Supply Voltage
- 85~250 V / 24~48 V
- Input Current
- 90mA
- Certification
- II2(1) G Ex db ia[ia Ga]IIC T6 Gb
- Certification
- II2(1) D Ex ia tb[ia Ga]IIIC T80℃ Db
Review
Description
Truck Electrostatic Gpuding Controller Earthing Pro TK
1. Introduction

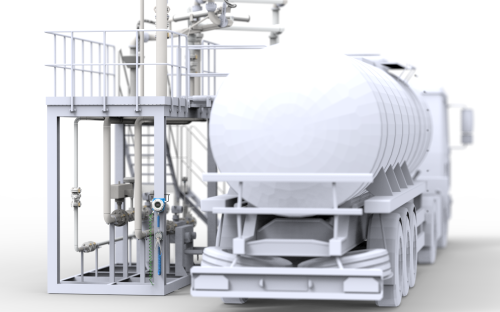

Earthing Pro TK is a true ground verification static control system designed specifically for tank inspection vehicles and inspection operations involving tank trucks.
Unlike basic continuity monitors, Earthing Pro TK verifies whether a tank vehicle is connected to a verified, low-resistance earth, ensuring electrostatic safety before and during inspection activities.
2.Why True Earth Verification Matters？
1.Tank vehicles may appear grounded but are not connected to a true earth
.
2.Temporary grounding points may be isolated or ineffective
.
3.Static discharge inside or around tanks can ignite flammable vapors
.
4.Continuity alone cannot guarantee electrostatic safety.
3.How Earthing Pro TK Works？
1.The grounding clamp is connected to the tank vehicle
.
2.Earthing Pro TK measures and verifies the earth reference.
3.The system confirms connection to a true, low-resistance ground
.
4.Visual and audible signals indicate grounding status
.
5.Alarm is triggered if true ground integrity is lost.
4.Key Features
1.True ground verification technology
.
2.Differentiates between false ground and true earth
.
3.Continuous monitoring during inspection operations
.
4.High-visibility visual and audible alarms.
5.Benefits
1..Prevents false grounding conditions
.
2.Enhances safety during tank inspection
.
3.Reduces electrostatic ignition risks
.
4.Improves inspection reliability and confidence.
