Portable Static Grounding Controller
- Model
- Earthing Pro MV
Item specifics
- Ground Resistance Threshold
- ≤ 10 Ω
- Outputs
- On-off signal,10A 250VAC/5A 30VDC
- Operating Temperature
- -20 °C to +60 °C
- Response Time
- < 1 second
- Supply Voltage
- 85~250 V / 24~48 V
- Input Current
- 90mA
- Certification
- II2(1) G Ex db ia[ia Ga]IIC T6 Gb
- Certification
- II2(1) D Ex ia tb[ia Ga]IIIC T80℃ Db
Review
Description
Portable Static Grounding Controller Earthing Pro MV
1. Introduction
Earthing Pro MV is a mobile static grounding controller designed for temporary or non-fixed loading and unloading operations.
It provides reliable grounding verification and alarm indication in situations where permanent grounding systems are not available or practical.
2.Technical Highlights
1.Ground continuity monitoring
.
2.Alarm output.
3.DC power supply from vehicle electrical system
.
4.Industrial-grade connectors and grounding cables.
3.How Earthing Pro MV Works？
1.The grounding clamp is connected to the target equipment or structure
.
2.Verifies the grounding connection
.
3.Status is indicated by visual and audible signals
.
4.Alarm is triggered if grounding is interrupted during operation.
4.Key Features

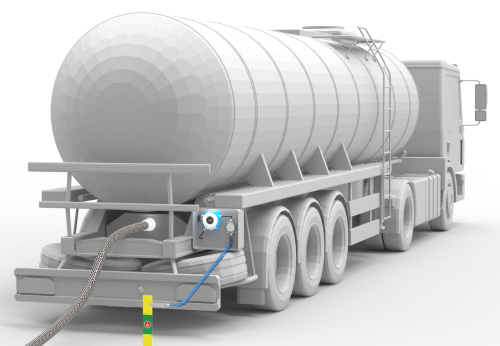

1.Dedicated vehicle-mounted design
.
2.Seamless integration with vehicle power systems
.
3.Continuous grounding monitoring
.
4.High-visibility visual and audible alarms
.
5.Rugged enclosure for mobile and outdoor environments
.
6.Quick deployment across multiple locations.
Earthing Pro MV – on-board static discharge protection, anytime, anywhere.
