Multi-Channel Grounding Controller
- Model
- Earthing Pro MUL
Item specifics
- Ground Resistance Threshold
- ≤ 10 Ω
- Outputs
- On-off signal,10A 250VAC/5A 30VDC
- Operating Temperature
- -20 °C to +60 °C
- Response Time
- < 1 second
- Supply Voltage
- 85~250 V / 24~48 V
- Input Current
- 90mA
- Certification
- II2(1) G Ex db ia[ia Ga]IIC T6 Gb
- Certification
- II2(1) D Ex ia tb[ia Ga]IIIC T80℃ Db
Review
Description
Multi-Channel Grounding Controller Earthing Pro MUL
1. Introduction
Earthing Pro MUL is a multi-channel static grounding and monitoring system designed for complex installations where multiple grounding points must be supervised simultaneously.
Supporting up to 16 independent channels, the system provides centralized monitoring, clear status indication, and enhanced electrostatic safety for large-scale industrial operations.
2.Why Multi-Channel Monitoring?
1.Large facilities often have multiple simultaneous operations
.
2.Individual controllers increase system complexity
.
3.Centralized monitoring improves safety oversight
.
4.Multi-channel systems reduce hardware and wiring redundancy.
3.How Earthing Pro MUL Works？

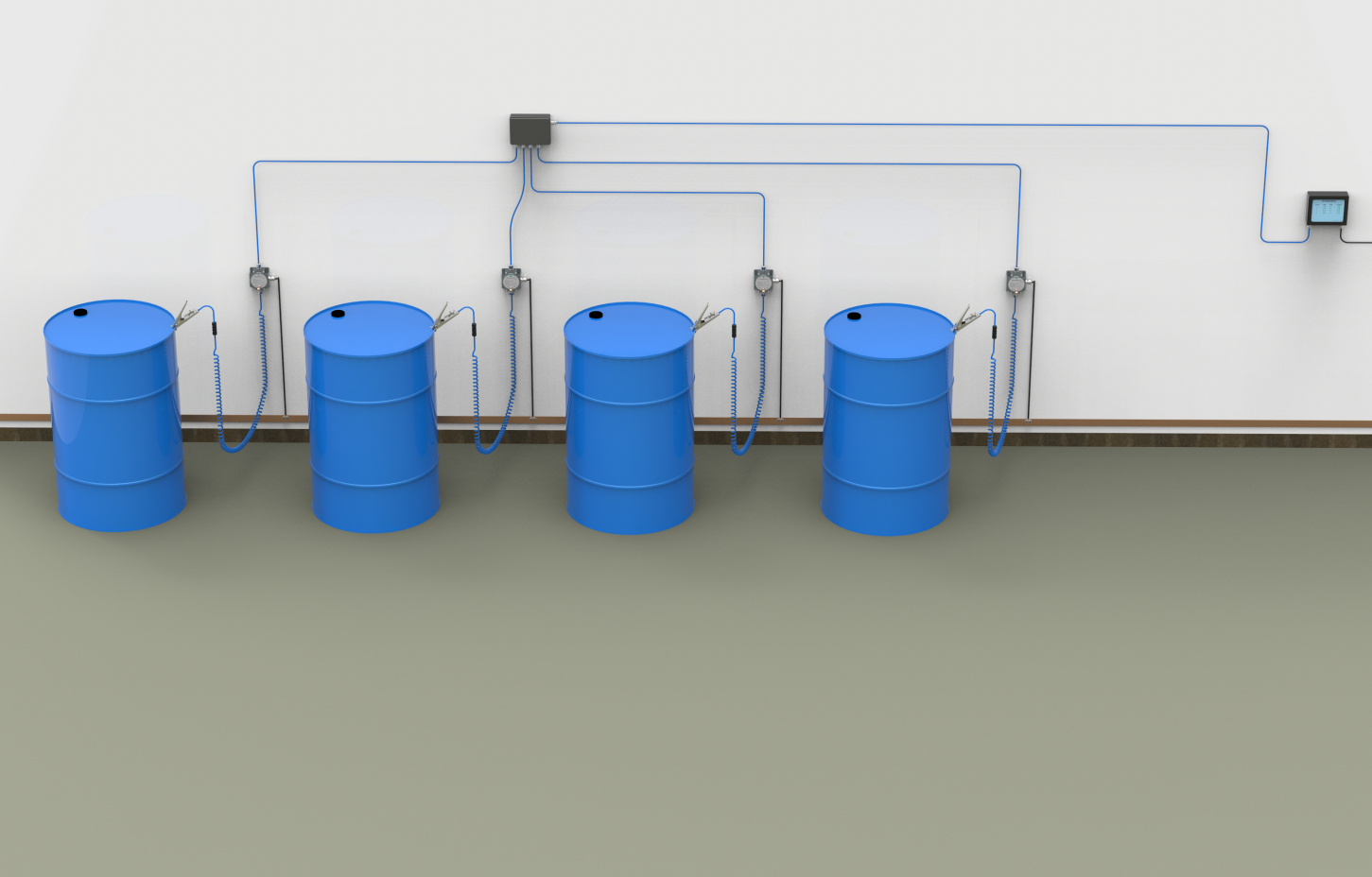

1.Each grounding clamp is connected to an individual channel
.
2.Earthing Pro MUL continuously monitors all channels
.
3.Grounding status of each channel is displayed centrally
.
4.Alarms are triggered if grounding is lost on any channel
.
5.System outputs can interface with external control systems.
4.Key Features
1.Supports up to 16 independent grounding channels
.
2.Centralized monitoring and control
.
3.Modular and scalable system design
.
4.Clear status indication per channel
.
5.Industrial-grade enclosure and components
.
6.Suitable for large-scale installations.
5.Applications
1.Multi-bay truck and railcar loading terminals
2.Tank farms with multiple grounding points
3.Chemical and petrochemical processing plants
4.Centralized grounding monitoring rooms
5.Large bulk material handling systems
6.Product Positioning
Earthing Pro MUL is designed for centralized monitoring of multiple grounding points.
For true earth verification at individual loading bays, Earthing Pro GE systems are recommended.
